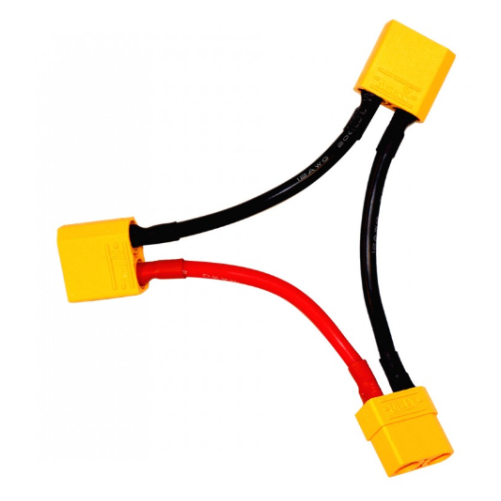

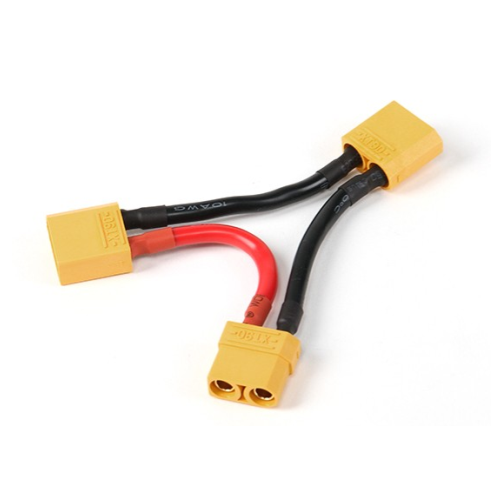

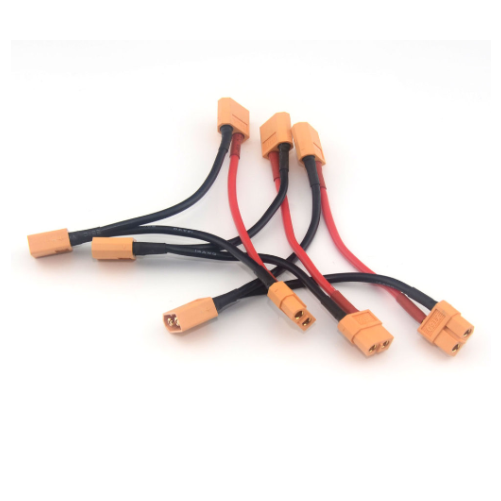

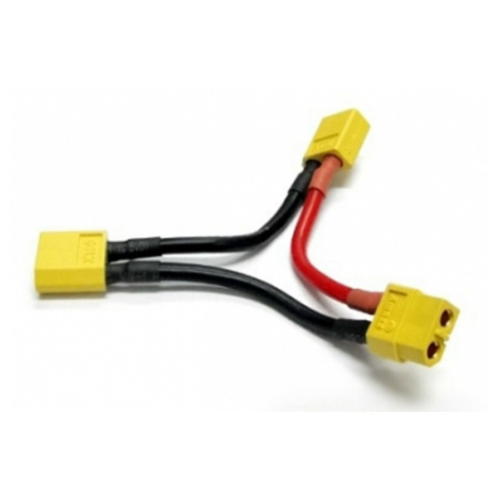

XT-60 Connector Harness for Series Connection Battery Adapter Cable (2M-1F)

SafeConnect XT60 Harness for 2 Packs in Series allows you to connect two identical packs in series to effectively double the total voltage and cell count. Use this to construct a larger voltage pack out of two matching smaller packs.

This harness comes with two Females and one male connector which is design to connect two batteries in series connection to provide you combine double voltage from both batteries at the harness output end male connector. Its an excellent and cheap way of buying larger Li-PO.

It also means that if you have a crash and damage a cell the loss is far less than losing an entire 6S1P pack. It’s the smarter way to run larger packs.

For example, 2×1800mAh 12V batteries connecting using this would become a 24V 1800mAh  battery.

Note:

1. Only use with batteries and ESCs that follow the standard polarity conventions for XT60 connectors.
2. All batteries must be fully charged before a connection.
3. Do not charge the Batteries while connected.

Note: The connector is available in two different variants (XT60 and XT60H), we will ship it randomly.

Package Includes :

1 x SafeConnect XT60 Harness for 2 Packs in Series.

Specification
