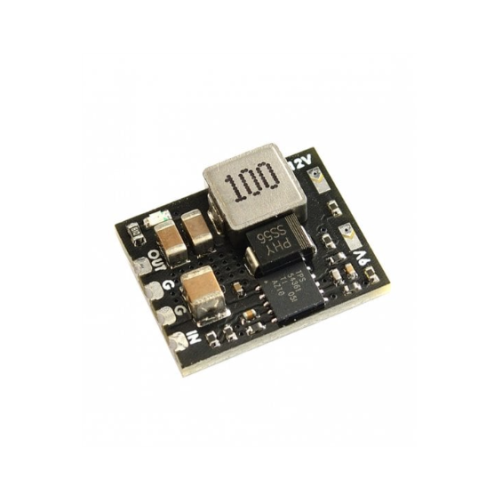

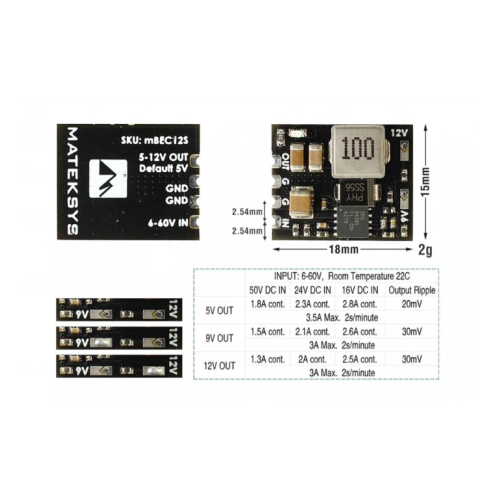

Matek Systems- Micro BEC 5V/9V-Adjustable

• A Highly efficient synchronous rectified step-down regulator.
• Selectable 5V or 9V output.
• Default 5V

High Efficiency Synchronous Step-down regulator
Wide 6V to 30V Operating Input Range
Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
VOut 5V or 9V Adj. Default is 5V.
VOut Load Regulation: 2%
Standby current: <5mA
Maximum Duty Cycle: 95%
OCP Protection and Hiccup
Thermal Shutdown
Output Short-circuit tolerant (5 seconds/minute)
Pins distance: 2.54mm
Size & Weight: 10x14x3mm, 1g
Packaging: 3pcs/unit
