HGLRC Zeus Nano 350mW 16mm/20mm/25.5mm VTX

HGLRC Zeus Nano 350mW 16mm/20mm/25.5mm VTX - Image 2

HGLRC Zeus Nano 350mW 16mm/20mm/25.5mm VTX

₹3,673.95

Overview:

- The HGLRC Zeus Nano 350mW VTX stands out as a leading choice for FPV drone enthusiasts who demand high performance, reliability, and ease of use.
- Its advanced features, robust design, and user-friendly interface make it an indispensable component for any serious drone pilot.

The Ultimate Guide to HGLRC Zeus Nano 350mW VTX: Specifications, Features, and Benefits

Introduction to the HGLRC Zeus Nano 350mW VTX

The HGLRC Zeus Nano 350mW VTX stands as a premier choice for FPV (First-Person View) drone enthusiasts seeking unparalleled performance and reliability. Designed to cater to the high demands of both hobbyists and professional pilots, this VTX (Video Transmitter) offers an array of advanced features and cutting-edge technology that set it apart in the competitive drone market.

HGLRC Zeus Nano 350mW VTX

Compact and Lightweight Design

The HGLRC Zeus Nano VTX is meticulously engineered with a compact 16mm x 20mm form factor, making it ideal for integration into various drone frames without compromising on space. Its lightweight construction ensures that it does not add unnecessary weight, preserving the agility and flight performance of your drone.

The HGLRC Zeus Nano 350mW VTX is a versatile video transmitter designed for FPV drones, compatible with 16mm, 20mm, and 25.5mm mounting patterns. Here are some key features and specifications:

Key Features:

Power Output: Switchable power output levels: 25mW, 100mW, 200mW, and 350mW.
Frequency Channels: 40 channels, including Raceband.
SmartAudio: Allows for remote VTX control via your transmitter, compatible with Betaflight OSD.

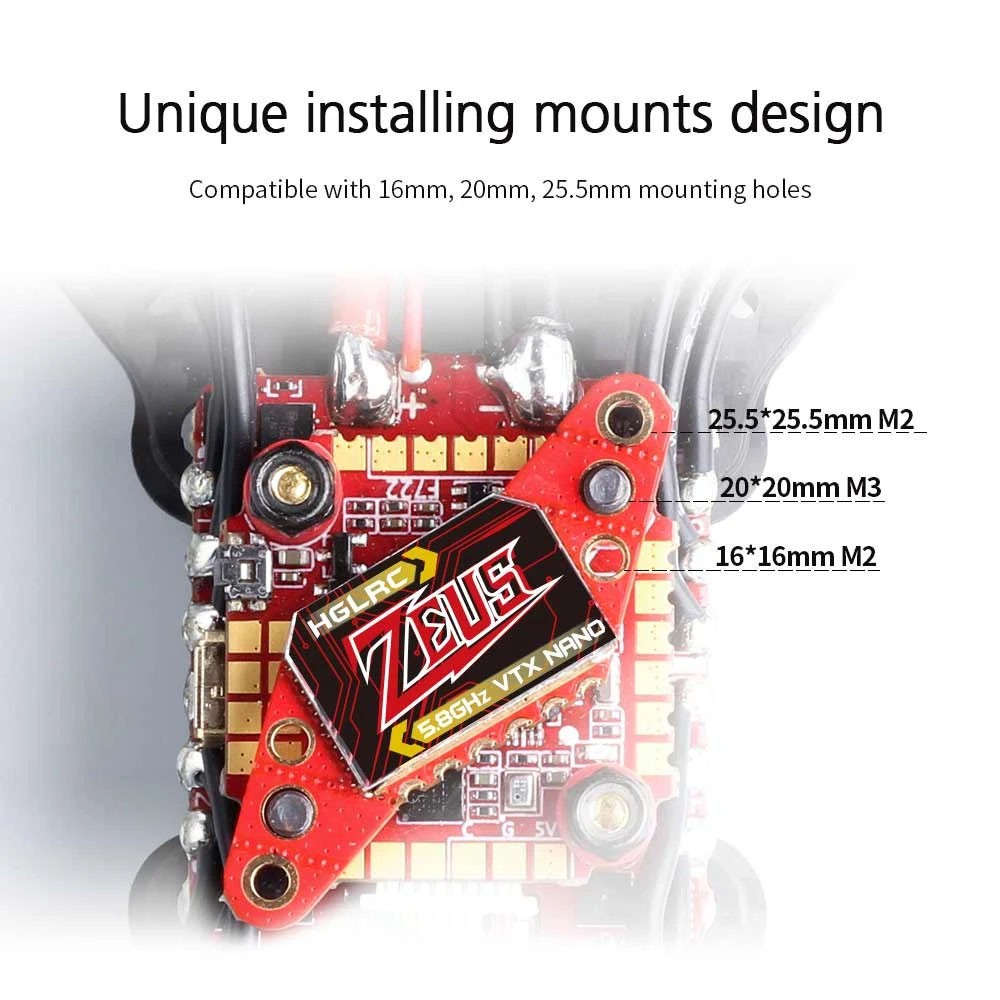

Mounting Options: Compatible with 16mm, 20mm, and 25.5mm mounting patterns, making it versatile for different frames.
Input Voltage: Wide input voltage range of 5V-25V, suitable for various power configurations.

Specifications:

Output Power: 25mW/100mW/200mW/350mW (adjustable)
Frequency Range: 5.8GHz, 40 channels
Antenna Connector: U.FL
Input Voltage: 5V-25V
Dimensions: 16x16mm, 20x20mm, 25.5×25.5mm mounting options

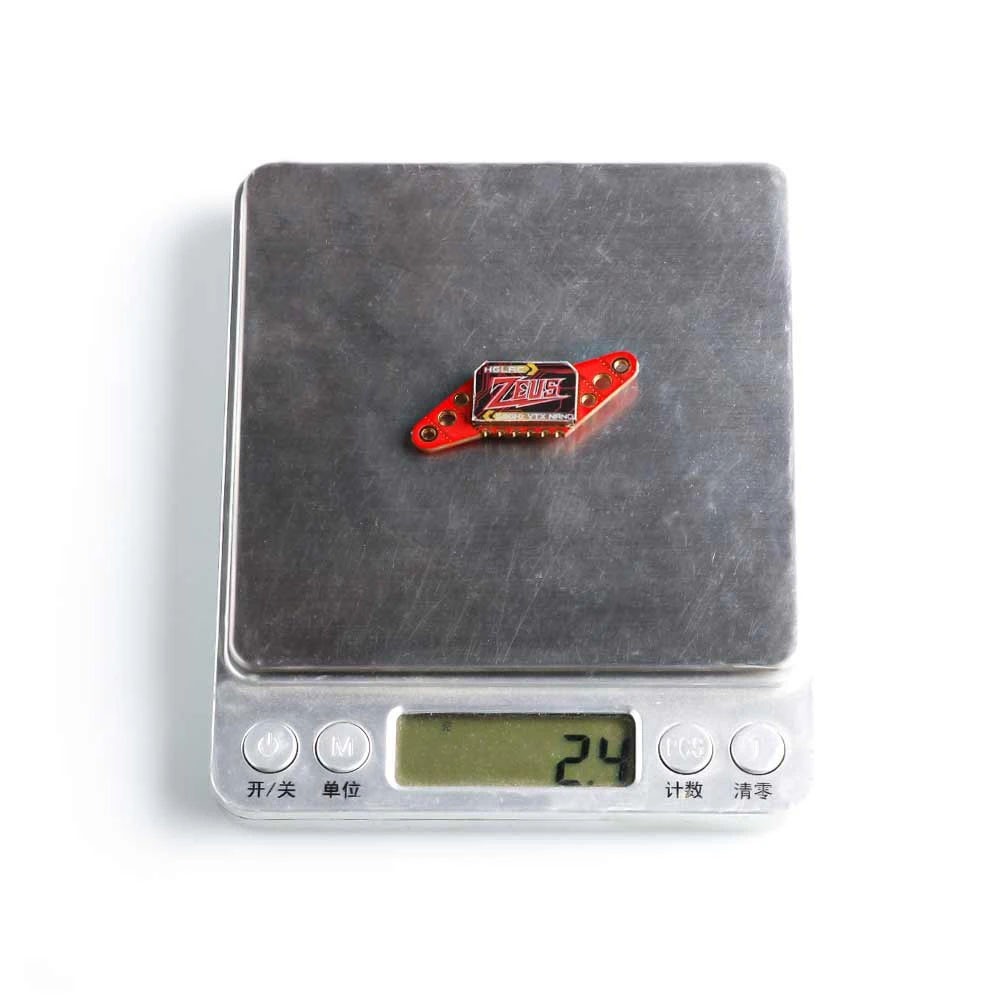

Weight: Approximately 2.3 grams (excluding antenna)

Installation Tips:

Mounting: Choose the appropriate mounting holes (16mm, 20mm, or 25.5mm) based on your frame’s configuration.
Power Connection: Ensure you connect the VTX to a suitable power source within the specified voltage range (5V-25V).
Antenna: Securely attach the U.FL antenna to avoid damage or loss of signal.
SmartAudio Setup: If using SmartAudio, configure it in Betaflight for remote control over the VTX settings.
Cooling: Ensure adequate airflow to prevent overheating, especially when running at higher power outputs.

Configuration in Betaflight:

Connect to Betaflight: Use a USB cable to connect your flight controller to Betaflight Configurator.
Ports Tab: Ensure the UART connected to your VTX is configured for SmartAudio.
Configuration Tab: Enable the VTX feature.
Video Transmitter Tab: Set your desired frequency and power level.

Usage Tips:

Lower Power Levels: Use 25mW or 100mW for indoor flying or close-range flights to minimize interference.
Higher Power Levels: Use 200mW or 350mW for outdoor or long-range flights for better signal strength and range.
Heat Management: Monitor the VTX temperature, especially at higher power settings, to avoid overheating.

By following these guidelines, you can effectively set up and use your HGLRC Zeus Nano 350mW VTX for optimal FPV performance.
