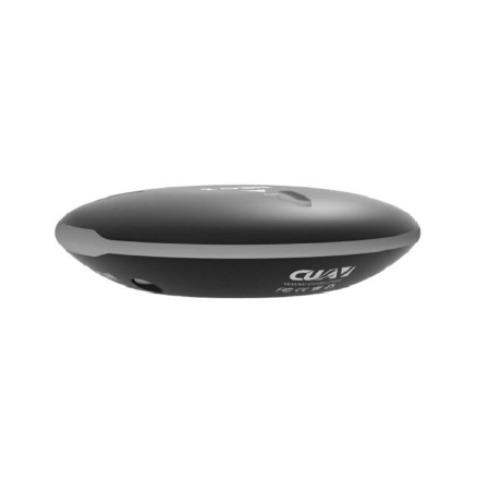

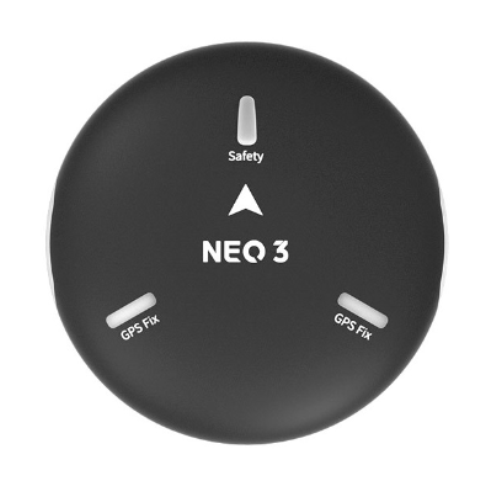

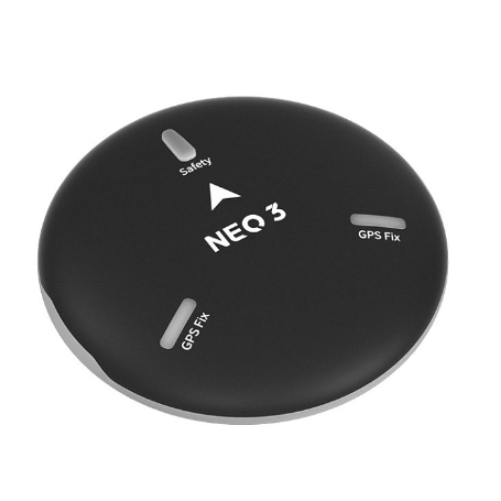

CUAV NEO 3 GPS Module | GNSS U-blox M9N Drone Hardware is a new product from CUAV brand. NEO continues the hardware design of NEO V2, upgrade the GNSS module to Ublox NEO M9N, supports Beidou, Galileo, Glonas and GPS receive at the same time, and the horizontal positioning accuracy is up to 0.7M. Integrated with safety switch, buzzer, RGB light.
Features:
- Easy to use
- Buzzer prompt
- safety switch
- UART+IO+I2C
- MS5611 Barometer
- RGB Status Light
- CROCOMM custom four-star high gain antenna
- Simultaneous reception by the four satellite systems: Supports simultaneous reception of Beidou, Galileo, Glonas, and GPS four satellite systems
- Good quality product
Comparison between NEO v2 & NEO 3:
Package Includes:
1 x CUAV NEO 3 GPS Module | GNSS U-blox M9N Drone Hardware

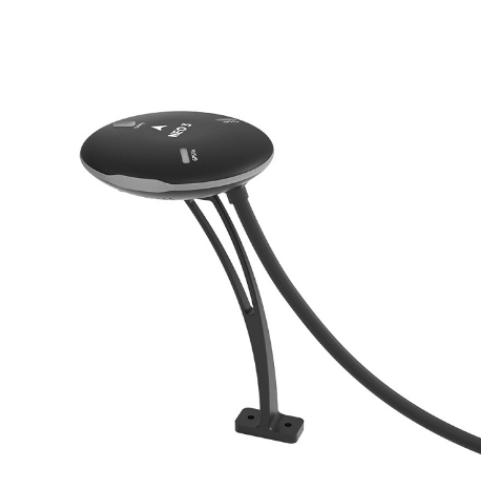

1 x Stand and cable
Specification
| Item Type: | GPS Module |
|---|---|
| No. of Concurrent GNSS | 4(Supports Beidou, Galileo,GLONASS,GPS receive at the same time) |
| GNSS Augmentation System | SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF), Other: RTCM3.3 |
| Nav. update | 25Hz(Max) |
| Accuracy | 2.0M (Upto 0.7M) |
| Speed accuracy | 0.05m/s |
| No. of GNSS (Max) type | 32+ |
| Port Type | GHR-04V-S |
| Input Voltage (V) | 4.7 to 5.2 |
| Operating Temperature (°C) | -10~70°C |
| Size | 60*60*15.8MM |
| Net Weight | 33g |
| Protocol | UART+IO+I2C |
| Shipping Weight | 0.145 kg |
| Shipping Dimensions | 9.5 × 9.5 × 6 cm |
