TWO-WAY SHOCKABSORPTION
NEW ADDED ROTATING SHAFT
Two-way shock absorption, more durable
New added rotating shaft, more stable

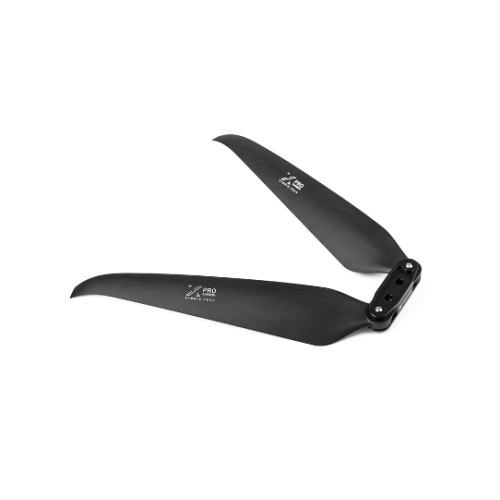

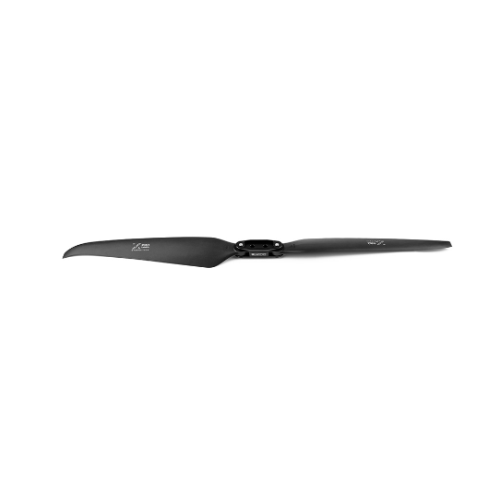

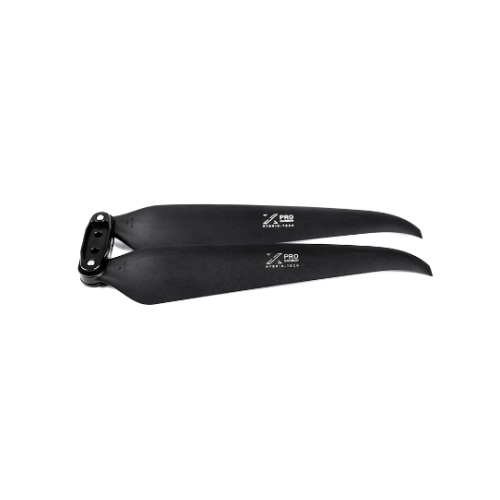

MFP PROP
MULTIROTOR FOLDING PRO PROPELLER

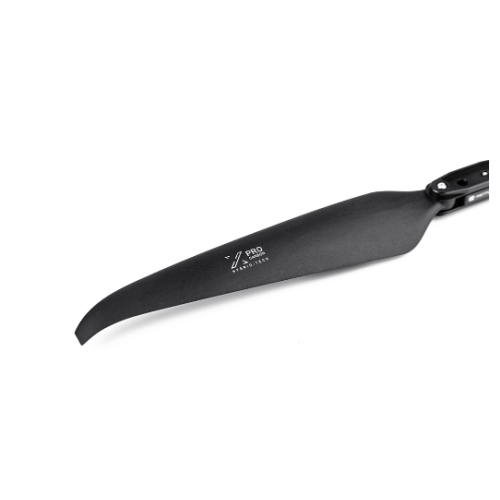

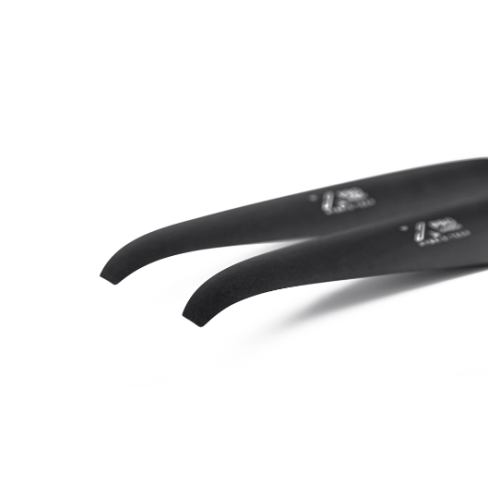

New propeller tip design
FLIGHT MORE EFFICIENTLY
After many aerodynamic simulations, the design of a large swept tip can effectively improve the vortex distribution of the tip while significantly reducing the vortex intensity, thereby achieving a double-sided improvement in pulling force and force efficiency.
Strengthened propeller root
LOADS INCREASED A LOT
The root structure is strengthened and combined with improved materials, which significantly increases the service life and supports high vertical pulling force and coaxial configuration.
T-MOTOR’s unique
DAM-BOARD DESIGN
it acts as a buffer to absorb impact energy with dam-board design and reduce the probability of damage to motors when drones crash
A：Dam-board
Corrugated Spring
rotating shaft

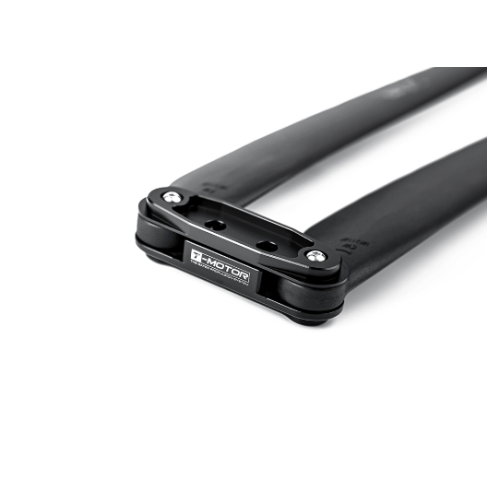

Innovative hub design
SHOCK ABSORPTION AND LOSS PREVENTION
The upper and lower plates are seated closely. The new stainless steel corrugated spring is added inside to improve the rotational damping and wear life of the gasket throughout its life cycle.

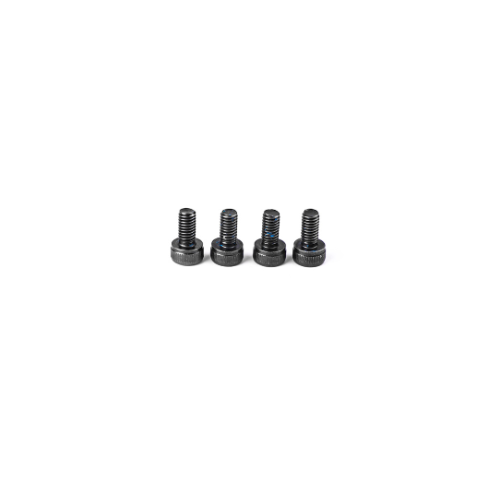

Rotating shaft screw design
REINFORCES AND ANTI-LOOSENING EFFECTIVELY
The aluminum rotating shaft is designed to prevent the blades from rubbing against the screws.The deep spring washer screws are combined with the self-locking nut to effectively ensure the anti-loosening function of the parts, thus eliminating possible safety implications during the flight of the blades.
| Model NO. | MF1705P | T-MOTOR Series | Folding |
| Weight(Single Blade) | 36.2g | Package Weight | 153.7g |
| Diameter | 17.5inch(444.5mm) | Package Size | 215*82*40mm |
| Pitch | 8.5inch(215.9mm) | Material | Polymer+CF |
| Recommended Thrust/RPM | 1~2.7kg/2950-4800RPM | Recommended Max Thrust/RPM | 5kg/6300RPM |
| Ambient Temp | -40℃～65℃ | Storage Temp/Humidity | -10℃～50℃/＜85% |
1.Please make sure that screws of cover plates are mounted well.
2.Do not add force onto the propellers,
3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. in this case, you will need
to replace them with good ones.
4.NEVER decompose the propellers. Decomposition of which will result in safety issues. Do not use the propellers in
hostile environments containing H20,S02,N02,Cl2,organosilicon,cyanogroup and phenol.
5.Keep the propellers away from the mentioned environments in (4)
6.For long time storage of over 6 months, please keep it in sealed preservation.
